Introduction

Continuous Glucose Monitoring (CGM) systems are transforming diabetes management and healthcare by providing real-time glucose readings through subcutaneous sensors. Unlike traditional finger-prick methods, CGM devices offer continuous and non-invasive monitoring, helping users track long-term glucose trends and achieve better lifestyle management.

However, traditional CGM solutions often require complex analog front-end circuits, leading to larger size, higher costs, and higher power consumption—factors that limit wearability and battery life. To address these challenges, Holtek offers a highly integrated and optimized CGM solution that combines compact design, low power consumption, and wireless connectivity.

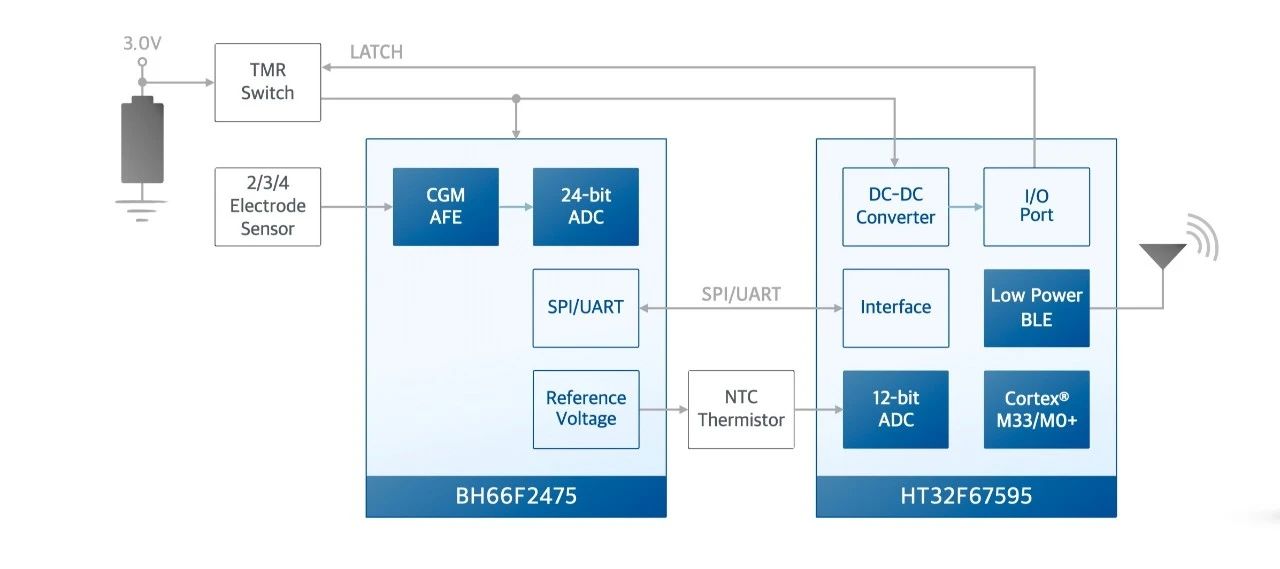

System Architecture

The Holtek CGM solution consists of two main parts:

1. Analog Front-End (AFE)

* Powered by the BH66F2475 Flash MCU

* Integrated continuous glucose monitoring AFE module

* Supports 2/3/4 electrode glucose sensors

* Built-in 24-bit Delta Sigma ADC, 4 DACs, 3 OPAs, and 1 comparator

* Communicates with the main MCU via SPI/UART

* Requires only minimal external circuitry, reducing cost and board space

2. Main Controller (MCU)

* Based on the HT32F67595 dual-core Bluetooth MCU (Arm® Cortex®-M33 & M0+)

* Provides BLE wireless connectivity with full service support

* Processes glucose data and transmits results to a mobile device

* Works seamlessly with Holtek’s HT CGM APP, enabling users to view real-time glucose trends

Application Areas

* Standalone compact CGM devices

* Insulin pumps with integrated CGM

* Complete CGM healthcare monitoring systems

* Other wearable healthcare devices requiring continuous glucose monitoring

Key Features

✔ Compact Circuit Design

* BH66F2475 integrates glucose sensor AFE with ADC, DACs, and OPAs

* HT32F67595 MCU integrates low-power BLE, reducing external component count

* Enables lightweight and space-saving CGM product designs

✔ Ultra-Low Power Consumption

* Average working current: 23.3 μA

* Operating cycle: 1s connection interval, 10s measurement interval, 60s transmission interval

* Storage current < 20 nA with TMR Switch mode

* Supports extended wearability and long-term storage without battery drain

✔ Wireless Transmission and Smart APP

* Low-power BLE ensures stable data transfer

* Dedicated HT CGM APP for real-time data visualization and glucose trend analysis
