General Description:

The HMC848LC5 is a 1:4 demultiplexer designed for data deserialization up to 45 Gbps. The device uses

both rising and falling edges of the half-rate clock to sample the input data in sequence, D0-D3 and latches

the data onto the differential outputs. A quarter-rate clock output generated on-chip can be used to clock

the data into other devices.All clock and data inputs / outputs of the HMC848LC5 are CML and terminated on-chip with 50 Ohms to the VCC, and may be DC or AC coupled. The inputs and outputs of the HMC848LC5 may be operated either differentially or single-ended. The HMC848LC5 also features an output level control pin, VCTRL, which allows for loss compensation or signal level optimization. The HMC848LC5 operates from a single +3.3V supply and is available in ROHS compliant 5x5 mm SMT package.

Features:

Supports Data Rates up to 45 Gbps.

Half Rate Clock Input.

Quarter Rate Reference Clock Output.

Fast Rise and Fall Times: 25 / 21 ps.

Programmable Differential Output.

 Voltage Swing: 300 - 1000 mVp-p.

Single Supply: +3.3V.

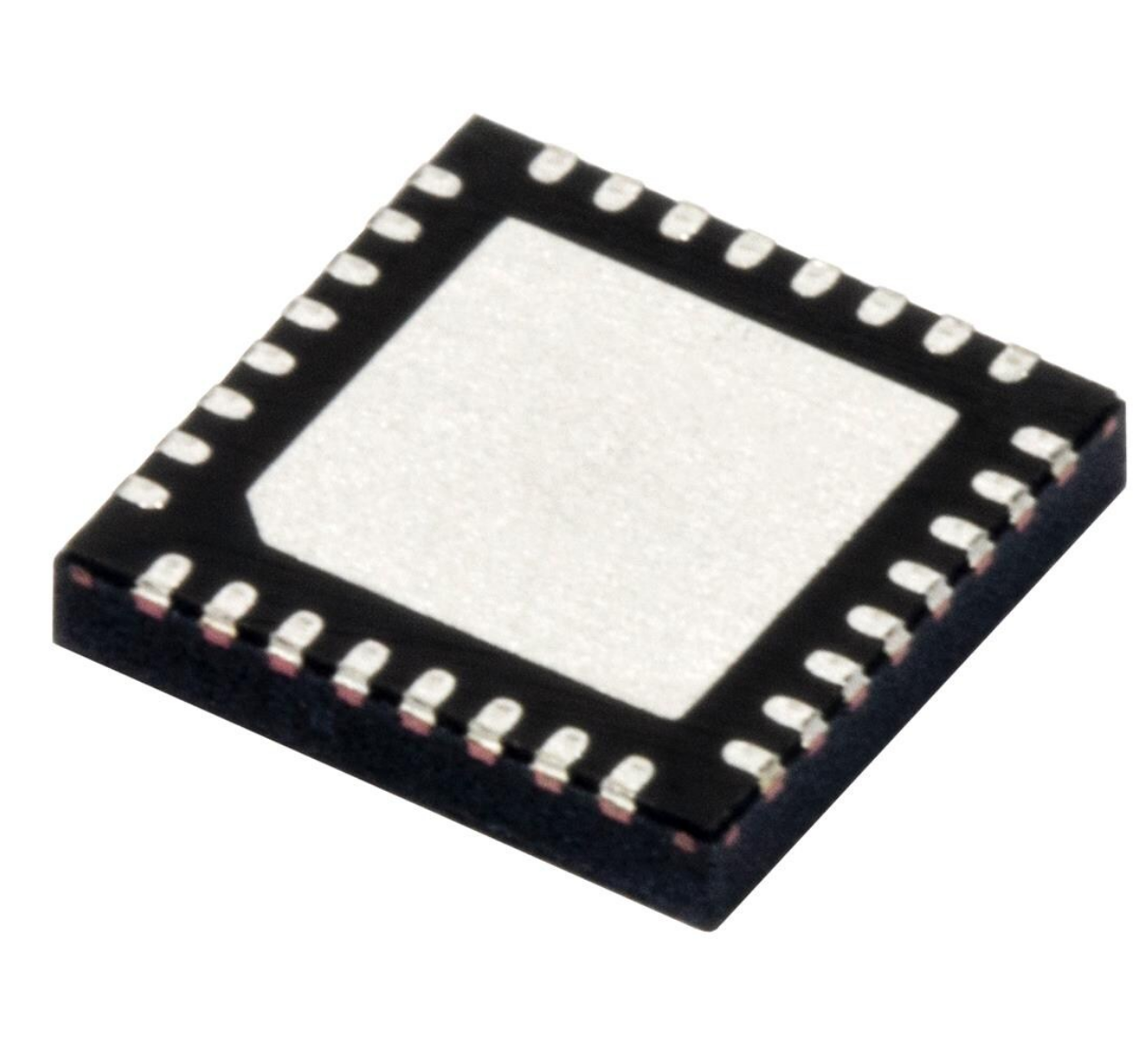

32 Lead Ceramic 5x5 mm SMT Package: 25 mm2.

Typical Applications：

The HMC848LC5 is ideal for:

• SONET OC-768.

• RF ATE Applications.

• Broadband Test & Measurements.

• Serial Data Transmission up to 45 Gbps.

• High Speed ADC Interfacing.
