Overview:

The SC12A is a self-calibrating capacitive touch sensor that detects whether or not the 12 sense discs have been touched. It can sense capacitive changes through any non-conductive medium such as glass and plastic. This capacitive switch can be used in many electronic products to increase the added value of the product.

Features.

◇ 12 completely independent touch-sensitive buttons.

◇ Maintains automatic correction without external intervention.

◇ Key outputs are fully anti-dithering.

◇Multi-interface - I2C serial interface / BCD code output.

◇ All keys share the same sensitivity capacitor.

◇ Differences in the length of the inductor line will not cause differences in sensitivity.

◇ 2.5V ~ 6.0V working voltage.

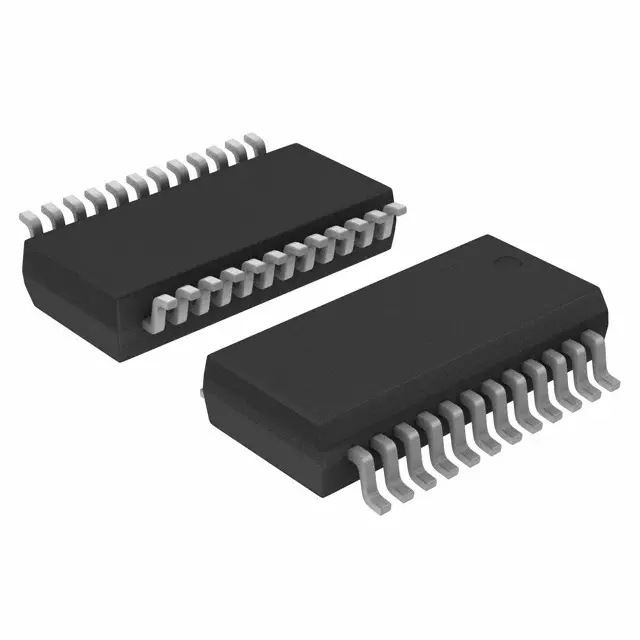

◇ Eco-friendly SOP24 package compliant with RoHS directive.

Applications.

◇Replacement of mechanical switch.

◇Home applications (TV, monitor keyboard).

◇ Human-machine interface for toys and interactive games.

◇ Keypad for access control.

◇ Light control switches.

◇ Sealed Keyboard Panel.
