Overview:

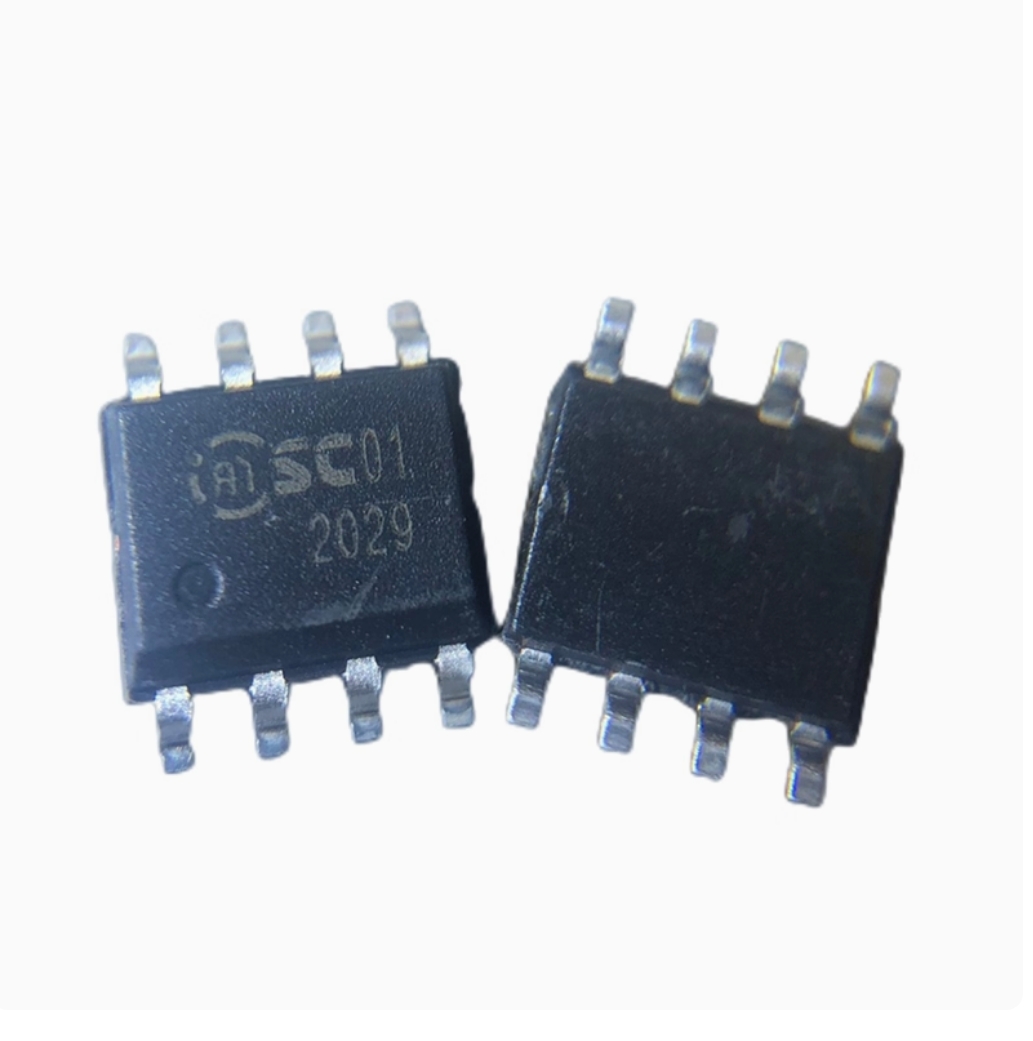

The SC01A is a single-button capacitive touch sensor that can sense changes in capacitance through any non-conductive medium such as glass and plastic. With the setup, SC01A can be applied to common touch key switch, smart toilet body sensing, water level detection.

Features.

◇ Ordinary touch button application.

◇ Intelligent toilet body sensing application.

◇ Water level detection application.

◇ Maintains automatic correction without external intervention.

◇ Key output is completely anti-dithering.

◇ Parallel one-to-one output.

◇ 2.5V ~ 6.0V operating voltage.

◇ Eco-friendly SOP8 package compliant with RoHS directive.

Applications: ◇Replacement of mechanical switches.

◇Replacement of mechanical switch.

◇Home applications (TV, monitor, keyboard).

◇Human-machine interface for toys and interactive games.

◇ Keypad for access control.

◇ Light control switches.

◇ Sealed Keyboard Panel.
