GENERAL DESCRIPTION:

The STI3470 is a fully integrated, high–efficiency2.0A synchronous rectified step-downconverter.The STI3470 operates at high efficiencyoverawide output current load range. This device offers two operation modes, PWMcontrol and PFM Mode switching control, whichallows a high efficiency over the wider rangeofthe load. The STI3470 requires a minimumnumberofreadily available standard external componentsand is available in a 6-pin SOT23 ROHS compliantpackage.

FEATURES:

 High Efficiency: Up to 94%(@5V).

 600kHz Frequency Operation.

 2.0A Output Current.

 No Schottky Diode Required.

 3.5V to 18V Input Voltage Range.

 0.6V Reference.

 Slope Compensated Current Mode Control forExcellent Line and Load Transient Response

 Integrated Internal Compensation.

 Stable with Low ESR Ceramic Output Capacitors.

 Over Current Protection with Hiccup-Mode.

 Input overvoltage protection (OVP).

 Thermal Shutdown.

 Inrush Current Limit and Soft Start.

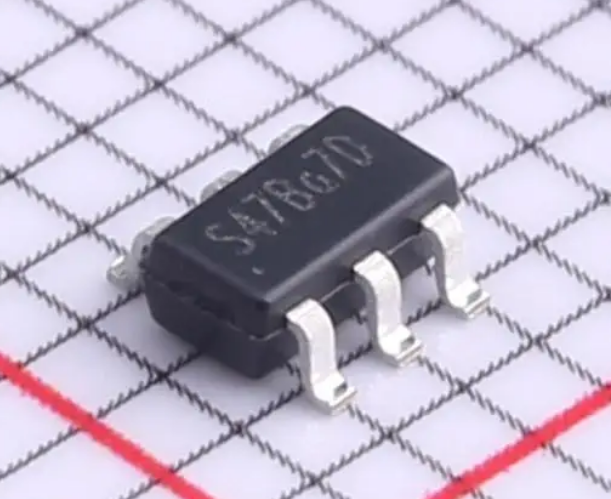

 Available in SOT23-6 Package.

 -40°C to +85°C Operation Temperature Range.

APPLICATIONS:

 Distributed Power Systems.

 Digital Set Top Boxes.

 Flat Panel Television and Monitors.

 Notebook computer.

 Wireless and DSL Modems.
