Overview :

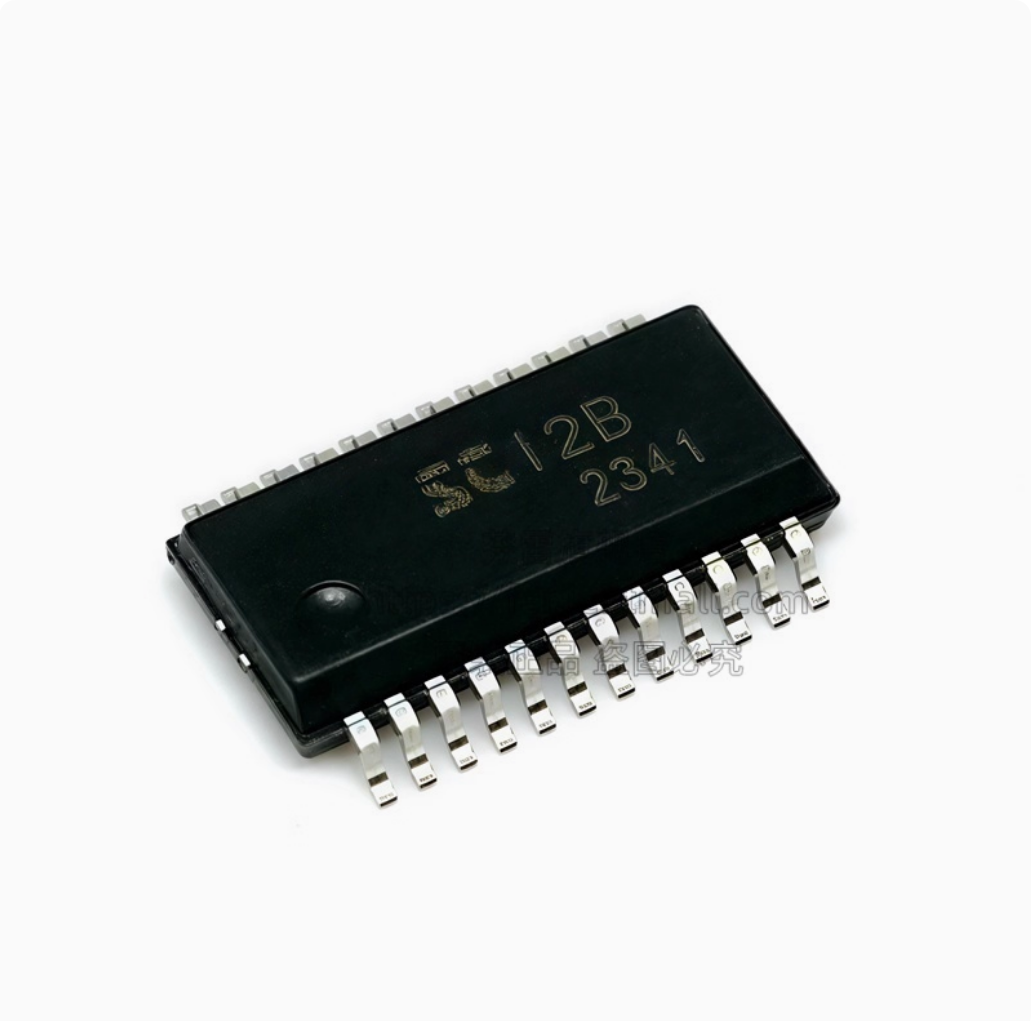

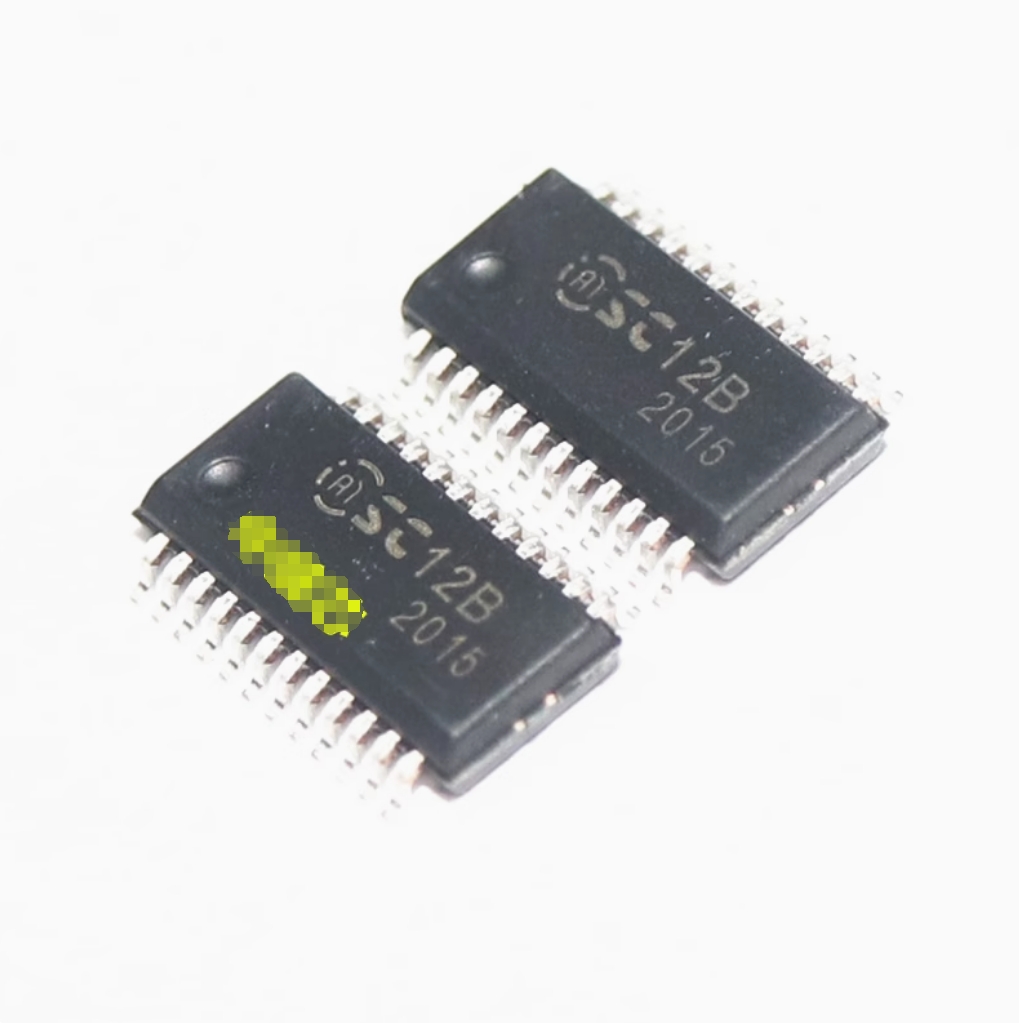

The SC12B is a self-calibrating capacitive touch sensor that detects whether or not the 12 sense discs have been touched. It can sense capacitive changes through any non-conductive medium such as glass and plastic. This capacitive sensing switch can be used in many electronic products to increase the added value of the product.

Features :

◇ 12 completely independent touch-sensitive buttons .

◇Automatic correction is maintained without external intervention .

◇ Key outputs are fully anti-dithering .

◇ Multiple interfaces - I²C serial interface / BCD code output.

◇ Multiple Sensitivity Adjustment Methods - Common Sensitivity Capacitor/Register Configuration .

◇ Idle state saves power consumption .

◇ 2.5V ~ 6.0V operating voltage.

◇ Eco-friendly SSOP-24(0.635) package compliant with RoHS Directive .

Applications:

◇Replacement of mechanical switches .

◇Home application (TV set, monitor keyboard) .

◇ Human-machine interface for toys and interactive games .

◇ Door Access Keys .

◇Light Control Switches .

◇Sealed Keyboard Panels .
